Ai SolventVap 2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
Features
- ETL tested to UL and CSA standards
- New electric evaporator flask lift, nonexposed water bath heater, and plexiglass bath cover, standard
- Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Downward-condensing vacuum connection design ensures safe vacuum operation.
- Modular design (individual rotary and water bath modules) for easy future upgrades.
- Easy multi-level manual lift with secure lock for the evaporating flask.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
Specifications
| Electrical requirements |
110V 60Hz 1~phase, 1,340 watts (heater: 1,300 watts, rotation motor: 40 watts) |
| Glass material | High borosilicate glass 3.3 |
| Evaporating flask |
Capacity: 0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2L) Maximum load: Not to exceed 60% of the flask's capacity Rotation speed: 10 to 280 rpm Evaporating speed: 20 ml per minute Lifting: weight balancing manual control with lock Max lifting distance: 4 inches (extendable to 10 inches) |
| Receiving flask |
0.26 gallon (1L) |
| Condenser | Glassware: Vertical with dual-spiral glass tubing Chilling fluid connection: 3/8" hose barb x 2 Vacuum connection: 3/8" hose barb x 1 Condensing surface: 1,260 cm2 or 1.4 sq ft |
| Working environment |
5 to 95°F |
| Water bath |
Temperature range: ambient to 95°C Temperature controller: digital Capacity: 6.5 L Material: stainless steel Dimensions: 10" diameter x 5" depth x 9.75" height Media: distilled water only Max. water level: not to exceed 1" from the top rim of the bath Number of heaters: one |
| Vacuum |
Connection: 3/8" hose barb x 1 (on condenser) Sealing: PTFE + Viton gaskets Ultimate vacuum: < 3 torrs |
| Safety | Dry-run, over-temp shut-off, fuse protections |
| Weight & dimensions |
Unit vs shipping: Rotary evaporator: 21 / 40 Lb Rotary evaporator: 22 x 12.5 x 26" / 26 x 21 x 29" (WxDxH) |
| Warranty | One year warranty on rotary evaporator except glassware and all sealing gaskets. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers. |
| Download | Ai rotary evaporator brochure |
| Compliance | ETL tested to UL and CSA standards |
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.
Example: The following table is a list of a variety of substances ordered by increasing vapor pressure (in absolute units).
.gif)

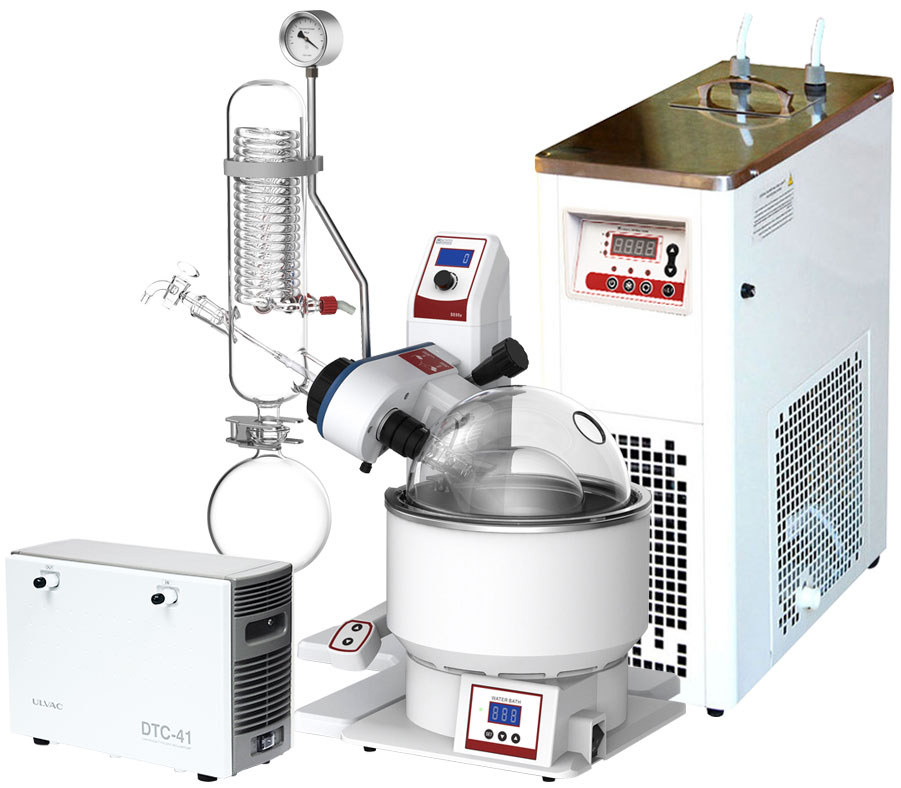

SE05-S2 Standard Package
|
Part description |
Qty |
Part image |
| Ai 110V C15-3 -15°C/5°F compact recirculating chiller and accessories | 1 set |  |

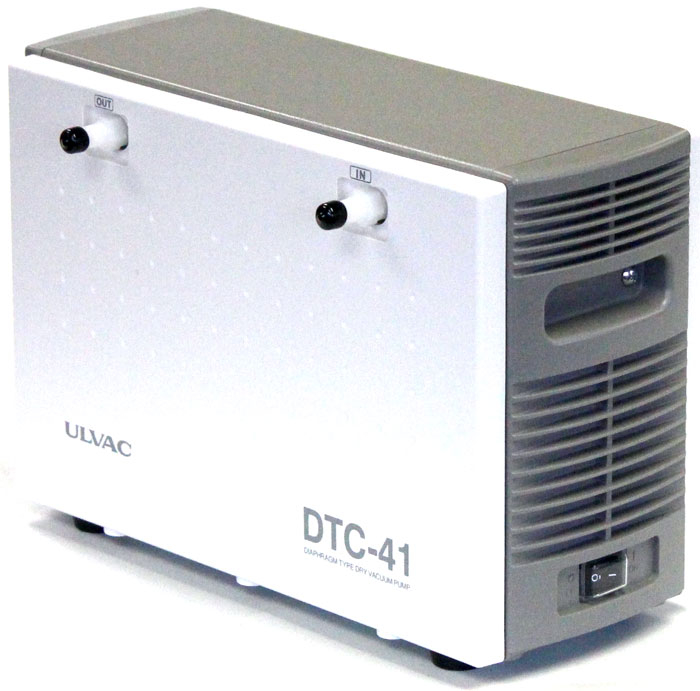

| ULVAC 110V DTC-41 1.6 cfm 7.5 torr 2-head diaphragm pump | 1 pc |
|

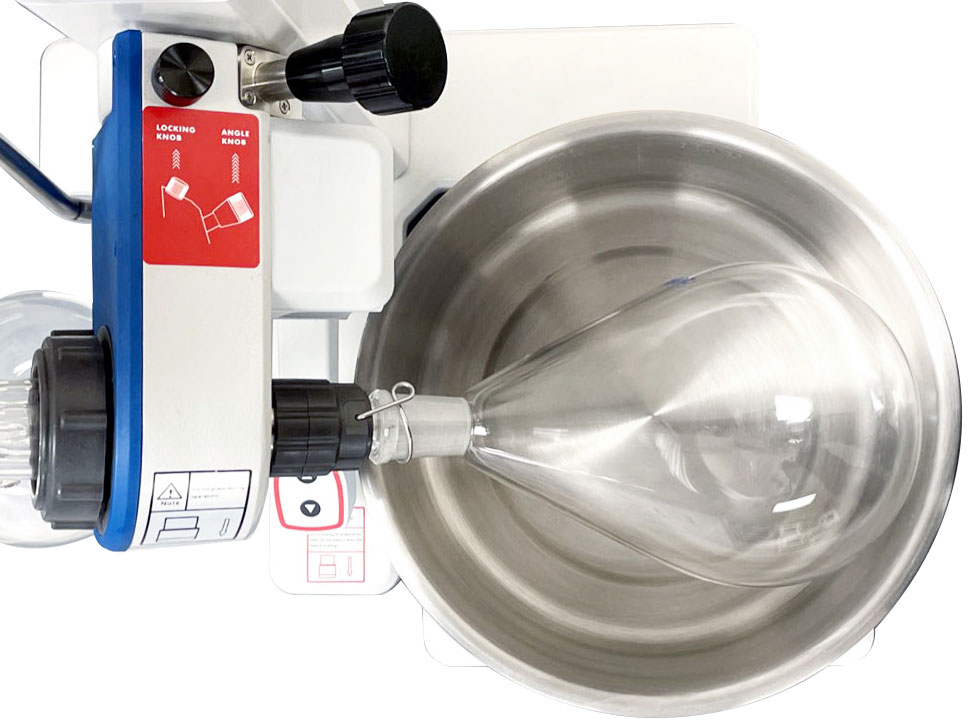

| Evaporator body with electric flask lift |
1 pc |  |
| Water bath | 1 pc |  |
| Vapor filtering bottle | 1 pc |  |
| Vertical condenser with 2 chilling water ports and 1 vacuum port, glass |
1 pc |  |
| 2L pear shaped evaporating flask, glass (choose based on volume of material to load) |
1 pc |  |
| 0.26G/1L round shaped receiving flask, glass |
1 pc |  |
| Glass vapor duct with seal |
1 set |  |
| Glass material feeding tube with valve & PTFE extension hose |
2 pcs |
|
| PTFE vacuum sealing kit | 1 set |
 |
| Condenser cap kit | 2 pcs |  |
| Glass shaft cap and evaporator flask quick-release | 2 pcs |
 |
| Condenser support and bracket | 1 pc |
 |
| Condenser support securing screw | 1 pc |
|
| Receiving flask ball joint clamp | 1 pc |  |

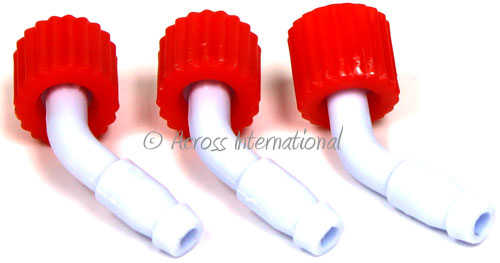

| GL14 connector |
3 pcs |  |
| 3-prong 110V US power cord for evaporator | 1 pc |
 |
| Silicone vacuum tubing |
10 ft |
 |
| Mechanical vacuum gauge | 1 pc |  |
Ai plexiglass water bath cover for 2L SolventVap  |
1 pc |  |
| User's manual | 2 pcs |
|
