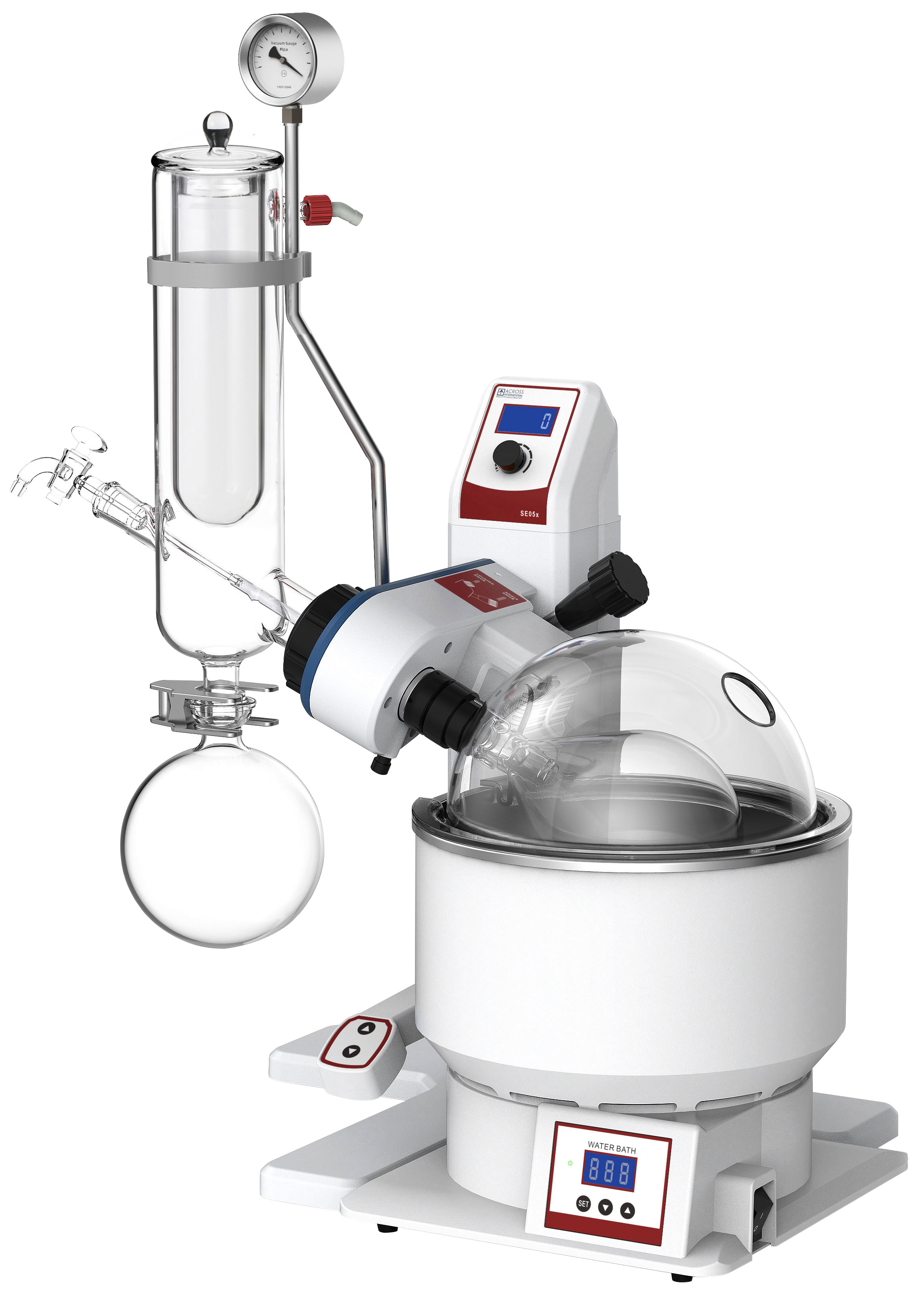

Ai SolventVap 2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
- ETL tested to UL and CSA standards
- New electric evaporator flask lift, nonexposed water bath heater, and plexiglass bath cover, standard
- No chiller needed, utilizes dry ice for optimal efficiency.
- Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Downward-condensing vacuum connection design ensures safe vacuum operation.
- Modular design (individual rotary and water bath modules) for easy future upgrades.
- Easy multi-level manual lift with secure lock for the evaporating flask.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
| Electrical requirements
110V 60Hz 1~phase, 1,340 watts (heater: 1,300 watts, rotation motor: 40 watts)
|Glass material||High borosilicate glass 3.3|
| Evaporating flask
|| Capacity: 0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2L)
Maximum load: Not to exceed 60% of the flask's capacity
Rotation speed: 10 to 280 rpm
Evaporating speed: 20 ml per minute
Lifting: weight balancing manual control with lock
Max lifting distance: 4 inches (extendable to 10 inches)
| Receiving flask
|| 0.26 gallon (1L)
|Condenser|| Glassware: Vertical cold trap condenser with lid
Vacuum connection: 3/8" hose barb x 1
| Working environment
|| 5 to 95°F
| Water bath
|| Temperature range: ambient to 95°C
Temperature controller: digital
Capacity: 6.5 L
Material: stainless steel
Dimensions: 10" diameter x 5" depth x 9.75" height
Media: distilled water only
Max. water level: not to exceed 1" from the top rim of the bath
Number of heaters: one
|| Connection: 3/8" hose barb x 1
Sealing: PTFE + Viton gaskets
Ultimate vacuum: < 3 torrs
|Safety|| Dry-run, over-temp shut-off, fuse protections
|Unit/shipping weight||21 / 40 Lb|
| Unit/shipping dimensions
|| 22 x 12.5 x 26" / 26 x 21 x 29" (WxDxH)
|Warranty|| One year warranty on rotary evaporator except glassware and all sealing gaskets.
Glassware may have minute blemishes that will not affect the function.
If you believe there are imperfections on your glassware, please contact us.
We check all our inventory and make sure no defective glassware is sent to our customers.
|Compliance||ETL tested to UL and CSA standards|
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.
Example: The following table is a list of a variety of substances ordered by increasing vapor pressure (in absolute units).
| Evaporator body with electric flask lift
|Water bath||1 pc|
| Vertical cold trap condenser with 1 vacuum port & lid, glass
| 2L pear shaped evaporating flask, glass
(choose based on volume of material to load)
| 0.26G/1L round shaped receiving flask, glass
| Glass vapor duct with seal
| Material feeding tube with valve, glass
|PTFE extension feeding hose||1 pc|
|PTFE vacuum sealing kit||1 set
|Condenser cap kit||2 pcs|
|Glass shaft cap and evaporator flask quick-release||2 pcs
|Condenser support and bracket||1 pc
|Condenser support securing screw||1 pc|
|Receiving flask ball joint clamp||1 pc|
| GL14 connector
|3-prong 110V US power cord for evaporator||1 pc
|Phillips screw driver||1 pc|
| Mechanical vacuum gauge
| Ai plexiglass water bath cover for 2L SolventVap
|User's manual||1 pc
