ECO UL 250C 14 Shelf Max 5 CF Vacuum Oven w/ LED Lights

Regular price $5,790.00






Introducing the new Ai 14-shelf capacity 5.0 cu ft ECO vacuum ovens with LED lights. Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Features
  • ETL certified to UL and CSA standards
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • 3rd gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4" tempered safety glass.
  • 3" thermal insulation prevents heat loss and minimizes the enclosure's outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with leveling feet.
  • For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance within 30 minutes from our engineers.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.



Vacuum oven specifications

 Electrical requirements
 110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts
 Chamber
 Size: 19.75 x 21.5 x 19.75"
 Material: Stainless steel
 Capacity: 5.0 cubic feet
 Heater  3-sided heating (left 800W, right 800W, bottom 1,400W)
 Temperature control  Controller: low proportional gain, microcomputer PID controlled
 Range: ambient to 250° (or 480°F)
 Display units: Fahrenheit or Celsius
 Uniformity: +/- 7% of setpoint
 Dwelling timer range: 1 to 9999 minutes
 Vacuum
 Ultimate vacuum level: better than 500 microns/millitorrs
 (
may vary based on your altitude, click here to learn more)
 Mechanical gauge range: 0 to 30 inch mercury
 Vacuum port: KF25 flange x 1
 Vent port: KF25 flange x 1
 Vacuum pump: Sold separately
 Weight  Unit: 390 Lbs, shipping: 600 Lbs
 Dimensions (WxDxH)  Unit: 32.25 x 28 x 30"
 Shipping: 38 x 37 x 38"
 Shelves
 Shelf size: 19.25 x 21 x 0.5" (WxDxH)
 Material: aluminum
 Style: pan-shape
 Capacity: 14 shelves max.
 Comes standard with oven purchase: 7 shelves
 Total area with 14 shelves: 39.3 sq ft or 5660 sq inch
 Distance between the most adjacent shelves: 1.25"
 Door gasket material  Silicone or Viton
 Observation window  1/2" tempered safety glass
 Safety
 Built-in circuit breaker
 Overheat shutoff protection
 Secondary over-temp protection dial

 In-door lights  White LED (pre-installed)
 Warranty  1 year








Standard package

 Part description

 Quantity

Part image

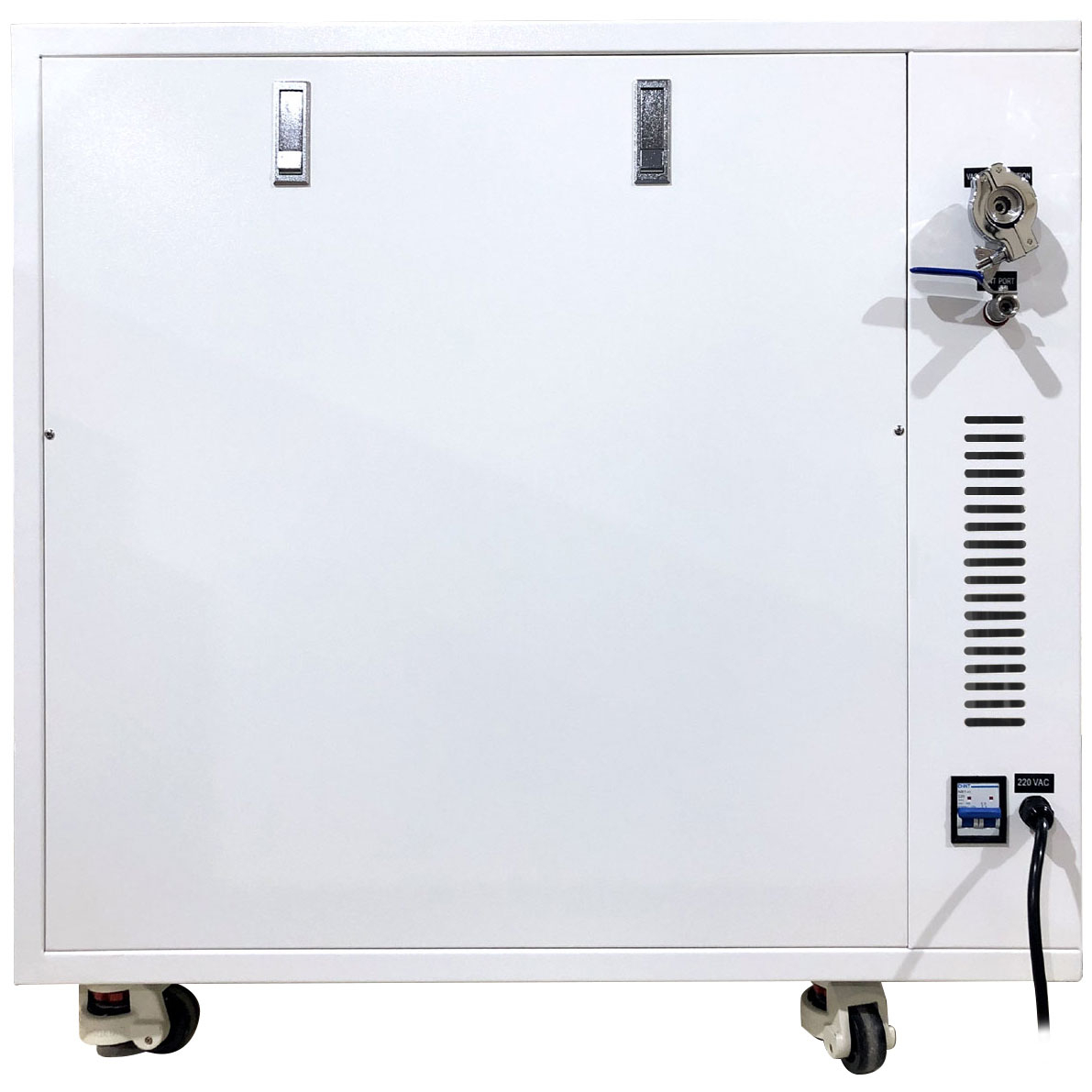

 Ai 5 cu ft ECO heating vacuum oven
1 pc

 Aluminum pan shelf 7 pcs
 KF25 quick clamp and centering ring 2 sets
 LED Light Cable 1 pc
 L5-30P 110V plug (installed on 110V units)
1 pc
 6-20P 230V plug (installed on 220V units)
1 pc
 User's manual 1 pc
