The Ai Glacier 18 Cu Ft -86C ultra-low upright ULT freezer is perfect for large storage of sample and products. Our unique single-compressor design offers ultra-low power consumption, very low noise, and ease of maintenance.
Features
- CDC and VFC compliant
- Great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs, and serum
- ETL tested to UL and CSA standards
- ETL tested to UL 471, Commercial Refrigerators and Freezers standards (optional)
- Remote alarm, RS232, 4-20 mA transmitter (optional)
- Central control with large 7" touch screen LCD display provides you a graph of temperature vs time curve.
- All stainless steel interior for clean operation, durability, and ease of maintenance
- Lock-able door, high or low temperature alarms, power failure alarm, door open alarm, filter clogging alarm, password protection, tons of security features to protect you, your products, and the unit
- Dual silicon sealing gaskets for ultra airtight operation
- 24-hour battery backup for controller
- USB interface for data export and storage
- Extremely quiet and reliable
- Front document holder for handy storage
- Environmentally friendly refrigerant
- Use only RoSH compliant non-toxic components and materials
- Tons of safety functions
- Built-in swivel casters with leveling feet
Data storage Q & A
Q: How long can we store temperature data files continuously?
A: A total of 100,000 sets of data can be stored.
Q: What is the temperature data sampling rate?
A: Default sampling rate is 10 minutes (52,560 data sets per year), 100,000 data sets can be stored for less than two years.
Q: Will the freezer delete stored data itself?
A: Yes, after reaching 100,000 data sets, the oldest data set will be automatically deleted for each new data set recorded.
Q: Does freezer offer users option to automatically delete .dtl files that do not need to be stored?
A: No. It is recommended to copy the data on the freezer regularly to a computer for backup. In addition, data will be lost after replacing a display board, so do backup the data before replacing a display board.
Important!
- Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
- This unit is NOT designed to be used on a mobile platform.
7" TOUCH SCREEN CONTROLLER
Part description |
Quantity |
Part image |
Ai G18 -86C ultra-low upright freezer |
1 pc |
|
Shelf | 3 pcs | |

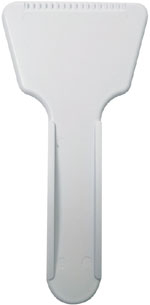

Ice scraper |
1 pc | |

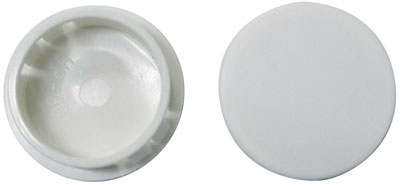

Additional access port inside cap | 2 pcs |
|

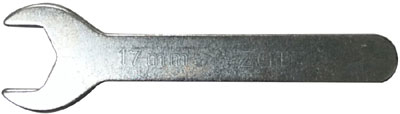

Wrench | 1 pc | |
Door key | 2 pcs | |
USB drive with data reading program |
1 pc | |
User's manual | 1 pc |
Specifications
Model | G18 |
Electrical requirements |
110V (±10%) 60Hz 1-Phase, 1160 watts 10.5A or 220V (±10%) 60Hz 1-Phase, 1160 watts 5.3A (NOT compatible with 220V 50Hz power) |

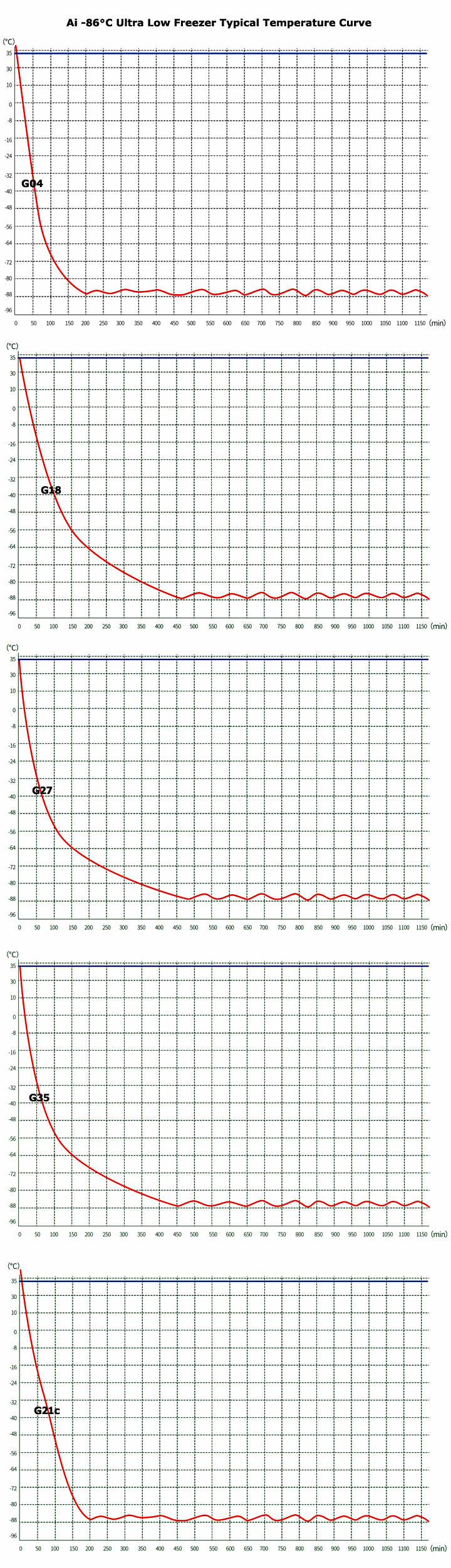

Performance | Temperature range: -40°C to -86°C Time to reach -86°C: 7.5 hours |
Compressor |
110V 60Hz: Embraco Model NT6226GK (V) 220V 60Hz: SECOP Model SC18MLX (104L2138) Power: 110V or 220V 60Hz, 1-PHASE, 1HP Number of compressors: one Refrigerant: Ai proprietary mixture gases (600g), CFC-free |

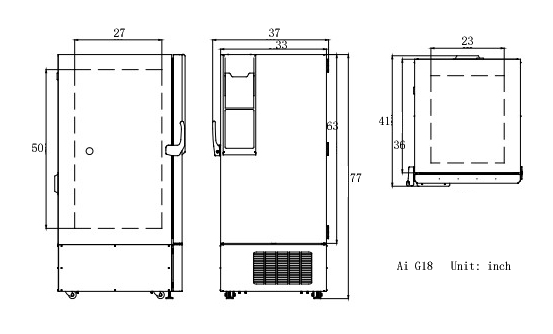

Chamber | Dimensions: 23 x 27.25 x 49.5" (WxDxH) Material: 304 stainless steel Capacity: 18 Cu Ft |
Shelf | Come with unit: three adjustable shelves (4 compartments) Material: 304 stainless steel Capacity: 85 Lbs on three shelves, evenly distributed 450 Lbs on the base of the chamber, evenly distributed Dimensions: 26 x 22.5 inches Additional shelf unit price: $100 |
Door and gasket |
Inner door: two, each with one sealing gasket External door: one with dual sealing gasket, lock-able |
Access port | Two, one on the side and one in the back, one inch diameter |
Built-in swivel casters | Four, with leveling feet |
Noise level |
48 dBA |
Communication | Remote alarm, RS232, 4-20 mA transmitter (optional) |
Working environment | - Temperature: 10°C to 32°C (humidity <57% Rh required at 32°C) - Humidity: <80% Rh - Altitude: < 2000 m / 6561 Ft - Stable, well-ventilated platform with no excessive dust - Keep freezer at least 12 inches from any walls or ceiling - Use dedicated power, do not share outlet - Extension power cable should be less than 10 feet is required - Freezer and power outlet should be grounded properly - Avoid direct sunlight, water spill and do NOT use freezer outdoor - Clean condenser fins and remove frost inside chamber at least once a month - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time. |
Battery backup system | 24 hours (for controller display and alarms only) |
Unit/shipping weight & dimensions |
624 Lbs / 677 Lbs 35 x 42 x 76" / 41 x 47 x 85" (WxDxH) |
Safety | Compressor over-temp protection Compressor power surge delay protection Short circuit and ground protection Over-current protection Over-temperature and low-temperature protection Power failure protection Low battery, door open, filter clogging, system failure alarms External door with lock |

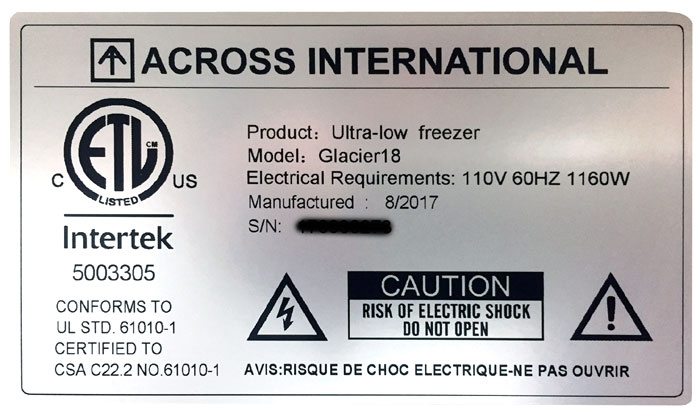

Compliance |
UL STD 61010-1 (standard) CSA C22.2 NO. 61010-1 (standard) UL STD 471 (optional) |
Warranty | One year |
