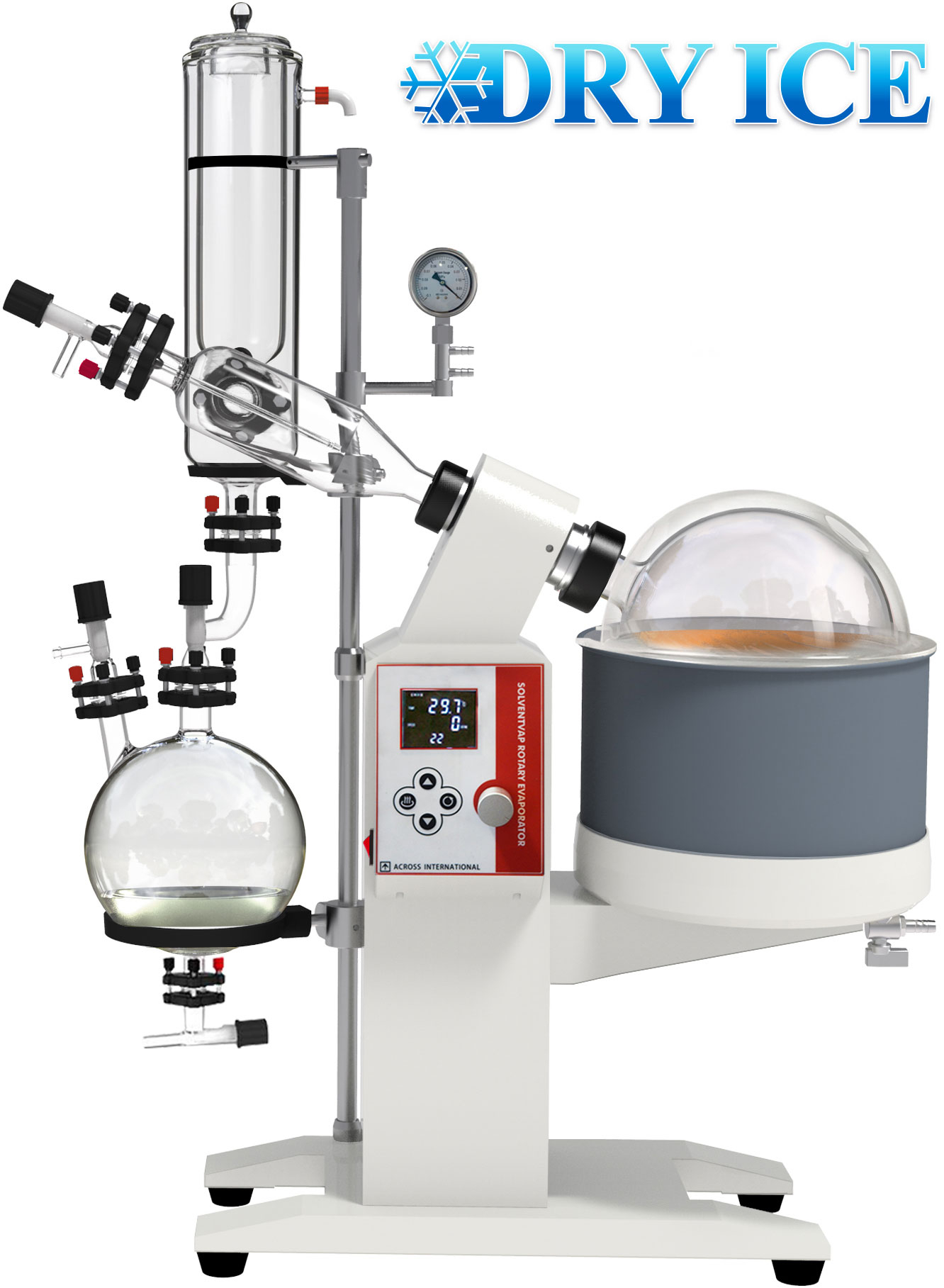

Ai SolventVap 5L Evaporator w/ Cold Trap Condenser & Power Lift

Regular price $4,840.00

Ai SolventVap 5L series rotary evaporators is now ETL tested to UL/CSA standards. This certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. SolventVap come with all PTFE valves for solvent-resistant operations. Also come with them are vertical glassware and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. That’s why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.

Rotary evaporator features a specially designed motor and worm gear, which provides constant rotation at speeds from 10 to 180 rpm. As the flask containing the solvent is rotated, it continually transfers a thin layer of liquid over the entire inner surface. This gives a very large surface area for evaporation, which is caused by the gentle heating from the water bath. The rotating system is fitted with a special seal that allows the apparatus to be placed under vacuum, effectively reducing the boiling point of the solvents and removing the vapor phase, making the process much more efficient. Each unit is also equipped with an easy-to-use vacuum release and a continuous feed system, which allows solvent to be constantly drawn into the rotating flask without needing to stop the operation.

Digital water bath operates from ambient temperature to 99°C (210°F) with PID temperature control stepping at 0.1°C increments. Heating coils are located directly inside the pan for the most efficient heating possible. A built-in overheat protector will shut down power, should the controller fail.

Standard Glassware Set includes 1.32 gallon (5 liters) round-bottomed evaporating flask, 0.79 gallon (3 liters) round-bottomed receiving flask, and vertical cold trap condenser. Rotary evaporators with vertical condenser for are great for distillation of solvents with higher boiling points.

Features

  • ETL tested to UL and CSA standards. CE certification optional.
  • No chiller needed, utilizes dry ice for optimal efficiency.
  • Water bath cover gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
  • Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
  • Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
  • Downward-condensing vacuum connection design ensures safe vacuum operation.
  • Motorized water bath lifting for precise control.
  • Easy, straight-forward visual operation with digital speed and temperature display.
  • PID temperature controller ensures accurate temperature control is maintained.
  • One year warranty on rotary evaporator except for glassware and all sealing gaskets.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

 Electrical requirements
 110V 60Hz single phase, 2300 watts, 21A
   or
 220V 50/60Hz single phase, 2300 watts, 10.5A
 Rotation motor: 300 watts
 Glass material  High borosilicate glass 3.3
 Evaporating flask
 Capacity: 1.32 gallon (5 liters)
 Maximum load: Not to exceed 60% of the flask's capacity
 Sealing flange: 2" diameter
 Rotation speed: 10 to 140 rpm
 Evaporating speed: 0.5 gallon/hour (water), 1 gallon/hour (alcohol)
 Receiving flask
 0.79 gallon (3 liter)
 Condenser  Glassware: Vertical cold trap (dry ice) condenser with lid
 Vacuum connection: 3/8" hose barb x 1
 Working environment
 5 to 95°F
 Water bath
 Temperature range: ambient to 99°C (210°F)
 Temperature controller: digital
 Dimensions: 11.4" diameter x 6.7" depth x 9" height
 Material: stainless steel
 Media: distilled water only
 Max. water level: not to exceed 1" from the top rim of the bath
 Number of heaters: one
 Drain port: one
 Exterior liner: rubber
 Lifting: motoriezed
 Maximum lifting distance: 4 inches
 Vacuum
 Vacuum level: < 3 torrs
 Sealing: PTFE + Viton gaskets
 Connection: 3/8" hose barb x 1
 Safety  Dry-run, over-temp shut-off, built-in circuit breakers
 Shipping weight  105 Lb (evaporator), 57 Lb (glassware)
 Unit dimensions
 30 x 15.7 x 42" (WxDxH)
 Shipping dimensions  29 x 17 x 35" (evaporator), 22 x 22 x 22" (glassware) (WxDxH)
 Download  Product brochure
 Compliance  UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016
 CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017)
 CE














A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.







Example: The following table illustrates a variety of substances, ordered by increasing vapor pressure (in absolute units).



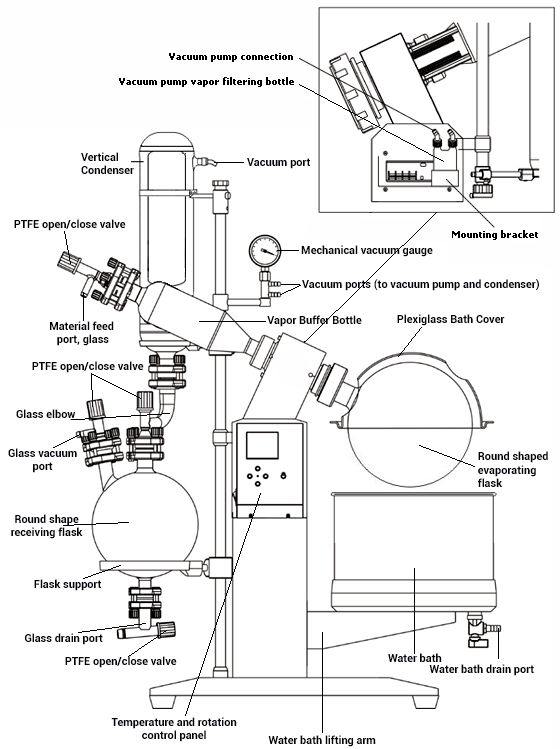

Standard package

 Part description

 Quantity

Part image

 Ai SolventVap 1.3-gallon rotary evaporator and water bath
1 set

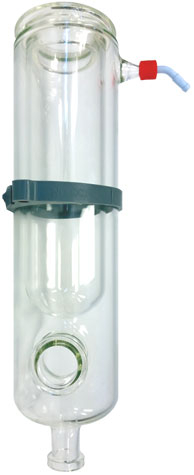

 Vertical cold trap condenser with 1 vacuum port and lid, glass

1 pc
 1.32G/5L round shaped rotating evaporating flask, glass
1 pc
 3L receiving flask with detachable drain port
1 pc
 Three-way tee vapor buffering flask, glass
1 pc
 Glass receiving flask & condenser connector elbow with PTFE open/close switch 1 set
 Receiving flask glass vacuum port with PTFE open/close valve
1 set
 Glass material feeding port with PTFE open/close valve
1 set
 Glass vapor duct and PTFE vacuum seal kit (pre-installed)
1 pc
 PTFE extension feeding hose 1 pc
 Stainless steel pole and mechanical vacuum gauge with 2 hose barb connection
1 pc
 Rubber-wrapped condenser and receiving flask support and bracket 3 pcs
 Flask quick clamp (4 smaller pcs for condenser, receiving flask and feeder, 1 larger pc for 3-way flask) & centering ring
6 sets
 GL14 connector
1 pc
 Allen key and backup inner hex screws 4 pcs
 Ai plexiglass water bath cover for SolventVap 5L  1 pc
 User's manual 1 pc
