Ai EasyChill 29 Cu Ft -30°C Upright Freezer UL 115V/230V

Regular price $6,990.00

The new Ai EasyChill series -30C 29 Cu Ft freezers works on 110V to 230V power source, it is perfect for large storage of sample and products. Our unique compressor design offers you speedy cooling, great temperature uniformity inside the chamber, energy efficiency, and extremely quite operation.

The E29 is Energy Star and UL certified and is great for storage of Covid-19 vaccines, DNA, RNA, virus samples, organs and serum.

Important!

  • Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.
  • This unit is NOT designed to be used on a mobile platform.







Specifications



 Model  E29
 Electrical requirements
 115V-230V (±10%) auto-detect, 50/60Hz 1-Phase 470W
 Performance  Temperature range: -10°C to -30°C
 Time from ambient to -30°C: 2.5 hours

 Uniformity: ±3°C
 Time from -30°C to 0°C with door closed (ambient 25°C): 6 hours
 Controller  Microprocessor-controlled, displays chamber temperature, ambient temperature
  and input voltage
 Compressor  Cooling type: direct cooling
 Defrost mode: manual
 Refrigerant: R290

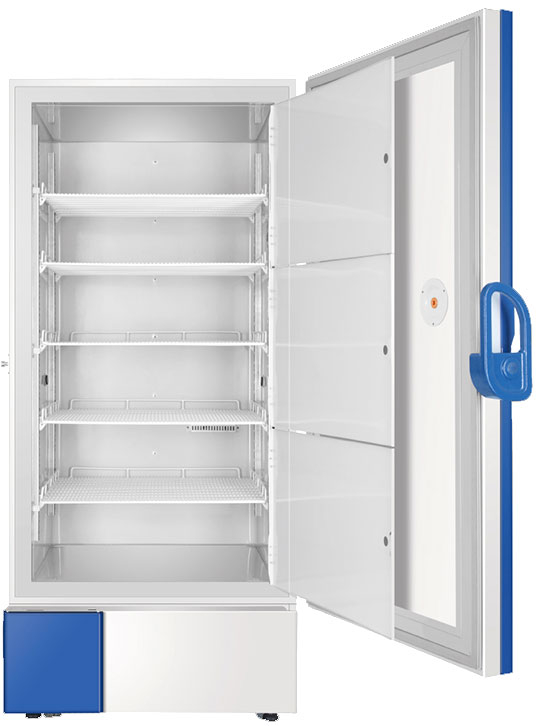

 Chamber  Dimensions: 29.5 x 29.7 x 57.5" (WxDxH)
 Material: coated steel
 Volume: 28.9 Cu Ft
 Shelf  Five
 Door and gasket
 Inner door: three
 Outer door: one, lockable door, dual sealing gaskets
 Working environment  - Temperature: 10°C to 32°C (ideal temperature: 18°C to 25°C)
 - Humidity: <85% Rh
 - Altitude: < 2000 m / 6561 Ft
 - Stable, well-ventilated platform with no excessive dust
 - Keep freezer at least 12 inches from any walls or ceiling
 - Use dedicated power, do not share outlet
 - Extension power cable should be less than 10 feet is required
 - Freezer and power outlet should be grounded properly
 - Avoid direct sunlight, water spill and do NOT use freezer outdoor
 - Clean condenser fins and remove frost inside chamber at least once a month
 - Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for
    24 hours before turning the unit on for the first time.
 Battery backup system  48 hours (for controller display and alarms only)
 Access port  Two
 Noise level
 37 dBA
 Unit/shipping weight & dimensions
 463 Lbs / 625 Lbs

39 x 37.5 x 78" / 41 x 42 x 83" (WxDxH)
 Safety  Compressor over-temp protection
 Compressor power surge delay protection
 External door with lock
 Door open, power failure, sensor error, low battery, chamber high/low
  temperature, and high ambient temperature alarms
 Compliance  UL 61010-1
 CSA C22.2
 Energy Star
 Warranty  One year
